Teknik Özellikler

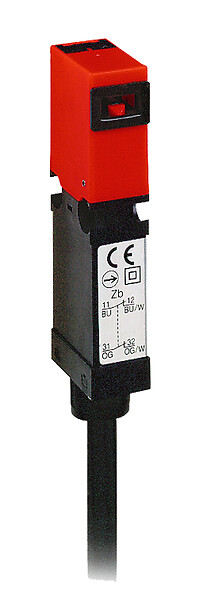

| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Product or component type | Safety switch |
| Component name | XCSMP |
| Design | Miniature |
| Material | Plastic |
| Head type | Key operated fixed head |
| Contacts type and composition | 3 NC |
| Contact operation | Slow-break, simultaneous |
| Electrical connection | Pre-cabled |
| Locking options description | Without locking of actuator |
| Insulation | Double insulated |
| Cable composition | 6 x 0.5 mm² |
| Positive opening | With NC contact |
| Actuator force for extraction | 8 NEWTON |
| Operating rate | 20 cyc/mn for maximum durability |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material | PA (polyamide) |
| Head material | PA (polyamide) |
| Standards | CSA C22.2 No 14EN 1088/ISO 14119IEC 60204-1IEC 60947-5-1ISO 12100UL 508 |
| Product certifications | CSAcULUL |
| Protective treatment | TC |
| Vibration resistance | 6 gn (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3 CENTIMETER |
| Package 1 width | 24 CENTIMETER |
| Package 1 length | 25 CENTIMETER |
| Package 1 weight | 0.456 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 15 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 7.586 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 3 CENTIMETER |
| Package 3 width | 25 CENTIMETER |
| Package 3 length | 24 CENTIMETER |
| Package 3 weight | 0.456 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
