Teknik Özellikler
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |
| Product or component type | Limit switch |
| Product specific application | Materials handling |

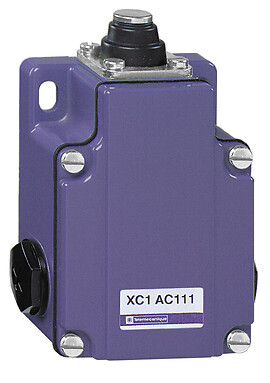

| Device short name | XC1AC |
| Sensor design | - |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return plunger metal |
| Switch actuation | On end |
| Type of approach | Vertical approach, 1 direction |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...1 x 2.5 mm² |
| Cable entry | 3 entries tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm |
| Contacts type and composition | 2 NC |
| Contact operation | Slow-break, simultaneous |
| Positive opening | Without |
| Contacts insulation form | Zb |
| Resistance across terminals | 8 mOhm |
| Terminals description ISO n°1 | (13-14)NO(23-24)NO |
| Shock resistance | 95 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529, IP65 conforming to NF C 20-010 |
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Operating position | Any position |
| Product certifications | CSA |
| Standards | CSA C22.2 No 14EN 60947-5-1IEC 60337-1IEC 60947-5-1VDE 0660-200 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 5.5 CENTIMETER |
| Package 1 width | 15.5 CENTIMETER |
| Package 1 length | 8.5 CENTIMETER |
| Package 1 weight | 554 GRAM |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
