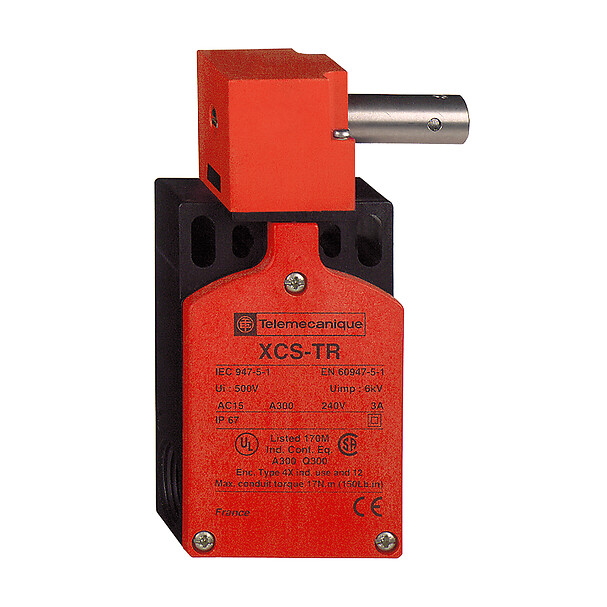

Teknik Özellikler
| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Product or component type | Guard switch |
| Component name | XCSTR |
| Material | Plastic |
| Head type | Turret head rotary axis |
| Insulation | Double insulated |
| Type of operator | Spindle 30 mm |
| Electrical connection | Terminal |
| Contacts type and composition | 1 NC + 1 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Clamping connection capacity | 1 x 0.34...2 x 0.75 mm² with or without cable end |
| Cable entry | 2 entries tapped for Pg 11 |
| Positive opening | With NC contact |
| Contact code designation | B300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 125 V, Ie = 0.2 A) conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 |
| Resistance across terminals | 30 mOhm conforming to IEC 60947-5-4 |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Enclosure material | Polyamide PA66 fibre glass impregnated |
| Lever material | Stainless steel |
| Standards | CSA C22.2 No 14EN 1088/ISO 14119IEC 60204-1IEC 60947-5-1IEC 60947-5-4ISO 12100UL 508 |
| Product certifications | BGCSAUL |
| Protective treatment | TCTH |
| Vibration resistance | 50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 6.2 CENTIMETER |
| Package 1 width | 6.8 CENTIMETER |
| Package 1 length | 12.4 CENTIMETER |
| Package 1 weight | 0.186 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 24 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 4.874 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 12.2 CENTIMETER |
| Package 3 width | 7 CENTIMETER |
| Package 3 length | 6 CENTIMETER |
| Package 3 weight | 0.186 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
