Teknik Özellikler

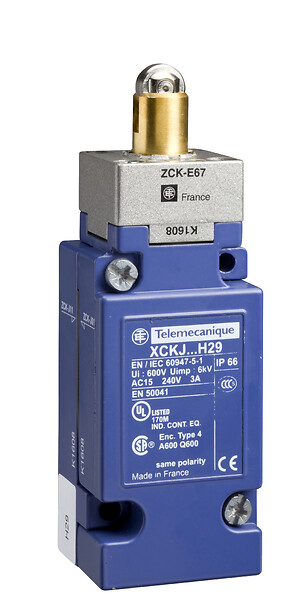

| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Contact operation | Snap action |
| Resistance across terminals | - |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Overvoltage category | - |
| Protective treatment | TH |
| Product certifications | CCCCSAUL |
| Standards | CENELEC EN 50041CSA C22.2 No 14IEC 60204-1IEC 60947-5-1UL 508 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov |
