Teknik Özellikler
| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Product or component type | Safety switch |

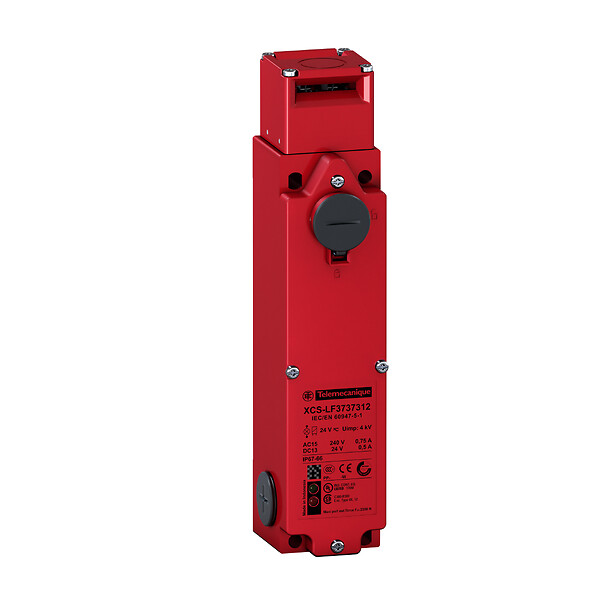

| Component name | XCSLF |
| Design | Slim |
| Material | Metal |
| Head type | Key operated turret head |
| Contacts type and composition | 2 NC |
| Solenoid contacts type and composition | 2 NC (slow-break, simultaneous) |
| Cable entry | 3 entries tapped for M20 x 1.5 |
| Electromagnet interlocking | Locking on de-energisation and unlocking on energisation of solenoid |
| [Us] rated supply voltage | 24 V - 15...10 % |
| Electrical connection | Spring terminal, clamping capacity: 1 x 1.5 mm² flexible or solid cable, spring terminal, clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends |
| Local signalling | 1 LED (orange) for actuator withdrawn, 1 LED (green) for actuator inserted and locked |
| Signalling circuit voltage | 24 V |
| Contact operation | Slow-break, simultaneous |
| Locking options description | With interlocking, locking by solenoid |
| Positive opening | With NC contact |
| Supply voltage type | AC/DC |
| Supply frequency | 50/60 Hz |
| Signalling circuit type | AC/DC |
| Maximum load current | <= 15 A |
| Actuator forcible withdrawal rtc | 3000 NEWTON |
| Actuator force for extraction | 20 NEWTON |
| Operating rate | 10 cyc/mn for maximum durability |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 conforming to IEC 61508 |
| Safety reliability data | B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material | Zamak |
| Head material | Zamak |
| Standards | CSA C22.2 No 14EN 1088/ISO 14119IEC 60204-1IEC 60947-5-1IEC 62061ISO 13849-1UL 508 |
| Product certifications | CSATÜVUL |
| Protective treatment | TC |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class I conforming to IEC 61140 |
| IP degree of protection | IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1, IP67 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 5.7 CENTIMETER |
| Package 1 width | 7.5 CENTIMETER |
| Package 1 length | 23 CENTIMETER |
| Package 1 weight | 1.272 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 8 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 10.631 KILOGRAM |
| Unit type of package 3 | S03 |
| Number of units in package 3 | 25 |
| Package 3 height | 30 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Indivisible sale quantity | 1 |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 185 KILOGRAM |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
