Teknik Özellikler
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |
| Product or component type | Limit switch |
| Product specific application | For hoisting and mechanical handling applications |
| Device short name | XCR |
| Sensor design | - |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Fixing mode | By the body |
| Movement of operating head | Rotary |

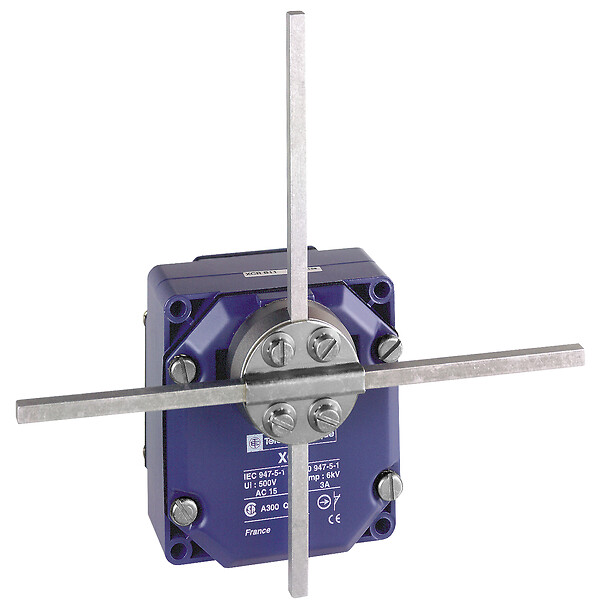

| Type of operator | Stay put crossed rods lever metal square rod 6 mm |
| Type of approach | Lateral approach, 2 directions |
| Body material | Zinc alloy |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300 |
| Contact operation | Snap action |
| Switch actuation | By any moving part |
| Positive opening | With |
| Contact block per direction [control circuit] | 1 per direction |
| Contacts insulation form | Zb |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO(21-22)NC |
| Shock resistance | 68 gn conforming to IEC 60068-2-27 |
| Vibration resistance | 9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Overvoltage category | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CCCCSA |
| Standards | CSA C22.2 No 14IEC 60204-1IEC 60947-5-1NF C 79-130 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 9 CENTIMETER |
| Package 1 width | 31.7 CENTIMETER |
| Package 1 length | 12.4 CENTIMETER |
| Package 1 weight | 1.121 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 1 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 0.455 KILOGRAM |
| Unit type of package 3 | S03 |
| Number of units in package 3 | 6 |
| Package 3 height | 30 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 7.439 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
