Telemecanique

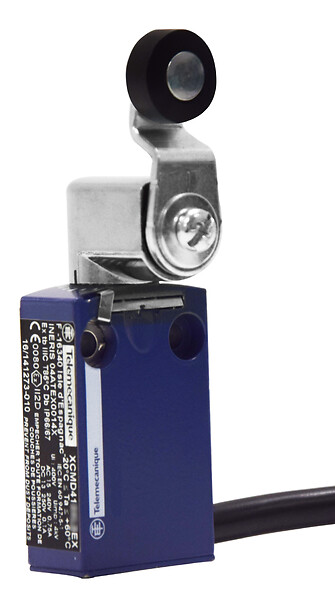

Schneider Electric Nihayet Şalteri Xcmd Metal Pimli Atex

Ürün kodu: XCMD4110L5EX Stokta yok - tedarik için sorun
Liste fiyatı: 295,00 € 138,65 € (1 EUR = 55,9609 ₺)
7.758,98 ₺ + KDV
9.310,77 ₺ KDV dahil
TL fiyat, TCMB döviz satış kuruyla güncel olarak hesaplanır.
Ürün koduXCMD4110L5EX
MarkaTelemecanique
KategoriSENSÖR VE KABLOLAR
StokStokta yok (sipariş üzerine)
BirimAdet
KDV%20
DurumYeni, orijinal ürün
Stoktan aynı gün kargo
Orijinal ürün, faturalı
Satış öncesi teknik destek
Stokta yoksa hızlı tedarik

Ürün Açıklaması ve Teknik Özellikler

Teknik Özellikler

Range of productTelemecanique Limit switches XC Standard
Series nameStandard format
Product or component typeLimit switch
Device short nameXCMD
Sensor designMiniature
Body typeFixed
Head typePlunger head
MaterialMetal
Fixing modeBy the body
Movement of operating headLinear
Type of operatorSpring return plunger metal
Switch actuationOn end
Type of approachVertical approach, 1 direction
Electrical connectionFixed cable
Contacts type and composition2 x (1 NC + 1 NO)
Contacts insulation formZb
Contact operationSnap action
Positive openingWith
IP degree of protectionIP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Body materialZamak
Head materialZamak
Cable composition9 x 0.34 mm²
Wire insulation materialPvR
Contact code designationR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1, C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals25 MOhm conforming to IEC 60255-7 category 3
MarkingII2 D-Ex tb IIIC T85°C Db IP66/67
Shock resistance25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection classClass I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatmentTC
Dust zoneZone 21 - 22
Product certificationsIEC-Ex INE 17.0020XINERIS 04ATEX0014X
StandardsIEC 60079-0IEC 60079-31
Directives2014/34/EU - ATEX directive
Unit type of package 1PCE
Number of units in package 11
Package 1 height4 CENTIMETER
Package 1 width20 CENTIMETER
Package 1 length20 CENTIMETER
Package 1 weight0.488 KILOGRAM
Unit type of package 2S02
Number of units in package 210
Package 2 height15 CENTIMETER
Package 2 width30 CENTIMETER
Package 2 length40 CENTIMETER
Package 2 weight5.335 KILOGRAM
Indivisible sale quantity1
California proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
