Teknik Özellikler
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Device short name | XCKZ |
| Product compatibility | XC2J |

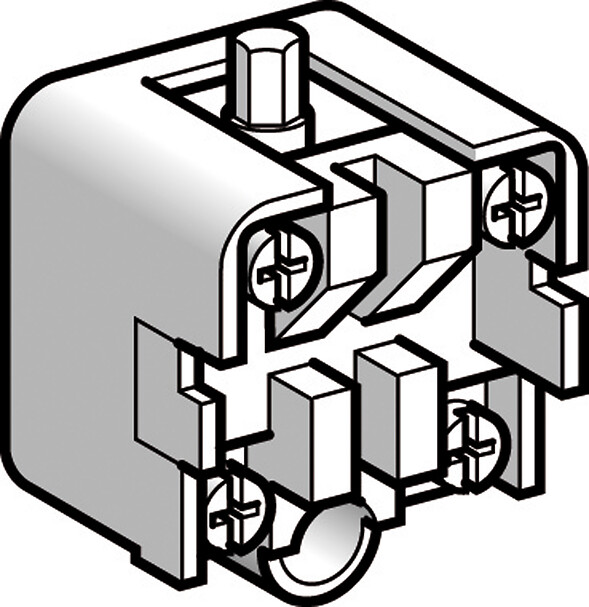

| Product or component type | Limit switch contact block |
| Series name | Standard format |
| Contacts type and composition | 1 C/O |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
| Positive opening | Without |
| Contacts insulation form | Za |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
| Compatibility code | XCKZ |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3.5 CENTIMETER |
| Package 1 width | 4.5 CENTIMETER |
| Package 1 length | 6 CENTIMETER |
| Package 1 weight | 0.05 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 6 CENTIMETER |
| Package 2 width | 3.5 CENTIMETER |
| Package 2 length | 4.5 CENTIMETER |
| Package 2 weight | 0.05 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
