Teknik Özellikler
| Range of product | OsiSense XC |
|---|---|
| Series name | Basic |

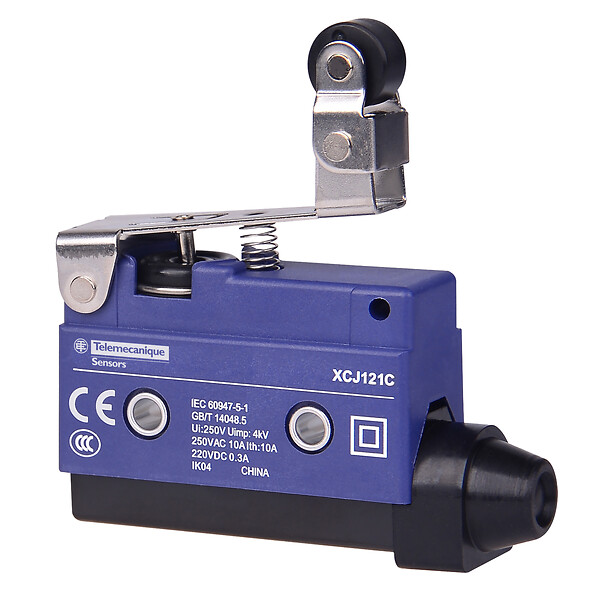

| Product or component type | Limit switch |
| Product specific application | Light to medium duty |
| Device short name | XCJ |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Plastic |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Roller lever plunger thermoplastic short and flat, retractable |
| Switch actuation | By 30° cam |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals |
| Cable entry | 1 flexible rubber cable gland, cable outer diameter: 8.5-10.5 mm |
| Contact operation | Snap action |
| Positive opening | Without |
| Contacts insulation form | C |
| Operating rate | 120 CYCLE_PER_MINUTE |
| Contact code designation | A300, AC (Ue = 240 V), Ie = 10 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1 |
| Resistance across terminals | 25 MOhm |
| Terminals description ISO n°1 | (NO-NC-C)OF |
| Shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | +/- 0.7 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Electrical shock protection class | Class II conforming to IEC 60947-5-1 |
| Marking | CCCCE |
| Standards | GB 14048.5IEC 60947-5-1 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 2 CENTIMETER |
| Package 1 width | 7 CENTIMETER |
| Package 1 length | 7.5 CENTIMETER |
| Package 1 weight | 66 GRAM |
| Unit type of package 2 | BB1 |
| Number of units in package 2 | 10 |
| Package 2 height | 8 CENTIMETER |
| Package 2 width | 8.5 CENTIMETER |
| Package 2 length | 22 CENTIMETER |
| Package 2 weight | 704 GRAM |
| Unit type of package 3 | S03 |
| Number of units in package 3 | 150 |
| Package 3 height | 30 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 10.971 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
