Teknik Özellikler
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |

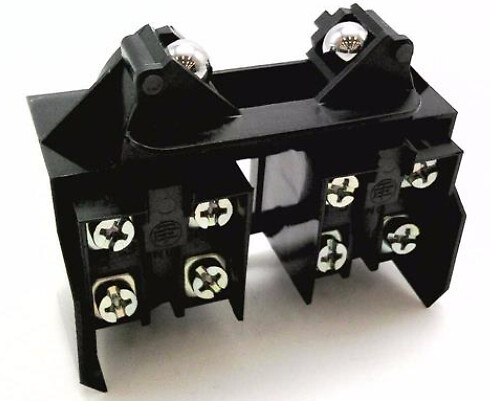

| Product or component type | Limit switch contact block with mounting plate |
| Device short name | XCRZ |
| Product compatibility | XCRT |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
| Positive opening | Without |
| Contacts insulation form | Za |
| Contact code designation | - |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3.3 CENTIMETER |
| Package 1 width | 6.5 CENTIMETER |
| Package 1 length | 8 CENTIMETER |
| Package 1 weight | 0.072 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
