Teknik Özellikler

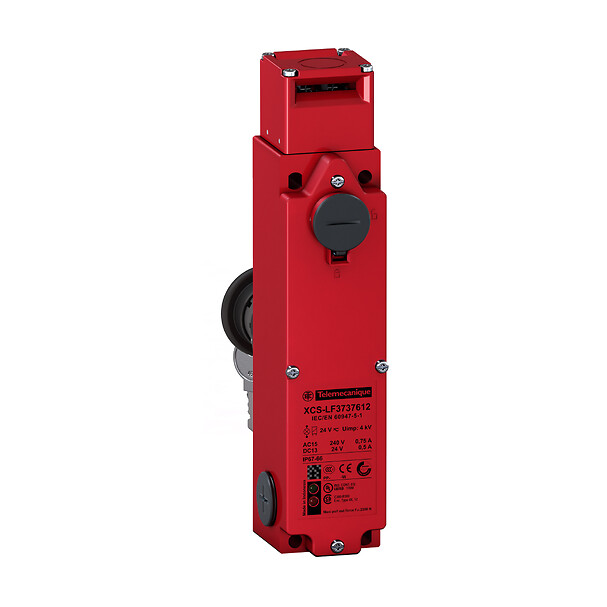

| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Product or component type | Safety switch |
| Component name | XCSL |
| Head type | Key operated turret head |
| Supply voltage type | AC/DC |
| Supply frequency | 50/60 Hz |
| Positive opening | With NC contact |
| Maximum load current | <= 15 A |
| Protection type | Overvoltage protection for signalling circuit |
| Operating rate | 10 cyc/mn for maximum durability |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Protective treatment | TC |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 5 CENTIMETER |
| Package 1 width | 6.2 CENTIMETER |
| Package 1 length | 28 CENTIMETER |
| Package 1 weight | 0.978 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 4 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 10.235 KILOGRAM |
| Unit type of package 3 | S02 |
| Number of units in package 3 | 10 |
| Package 3 height | 15 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 10.235 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
